Introduction to Shuttle Racking System

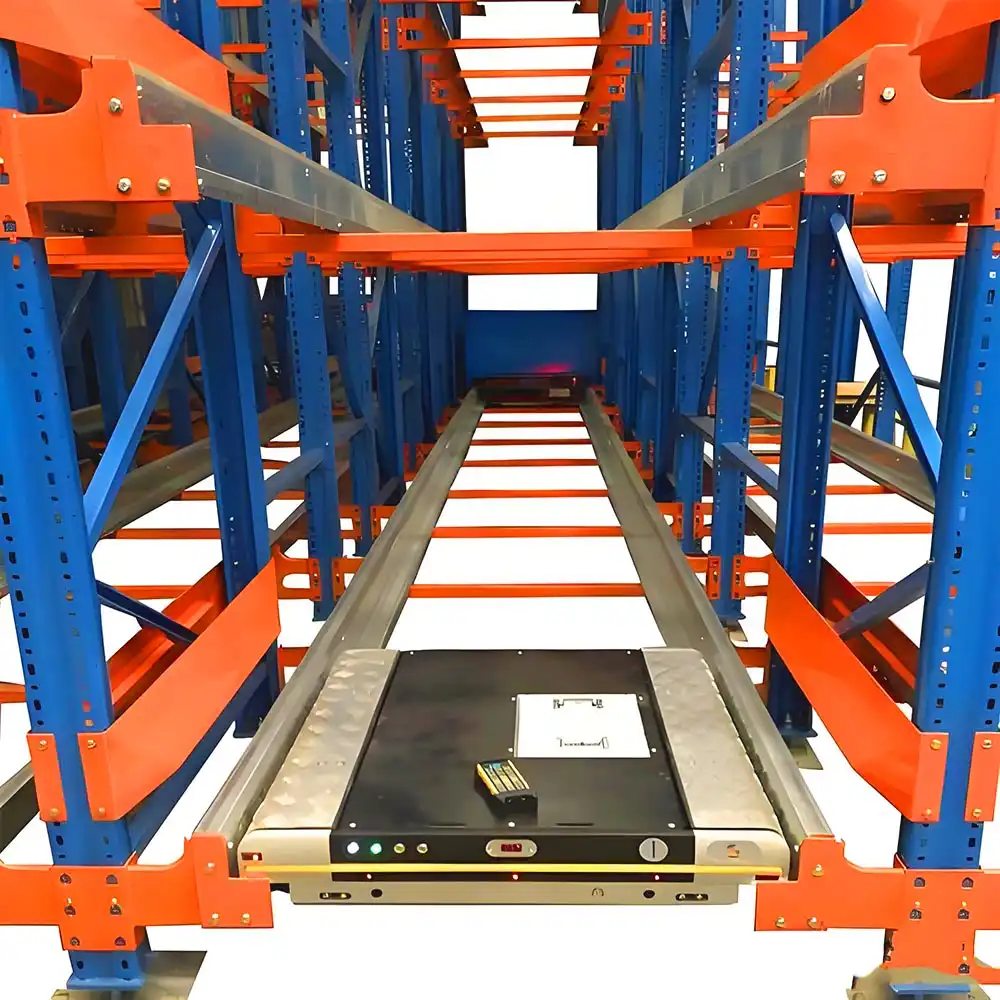

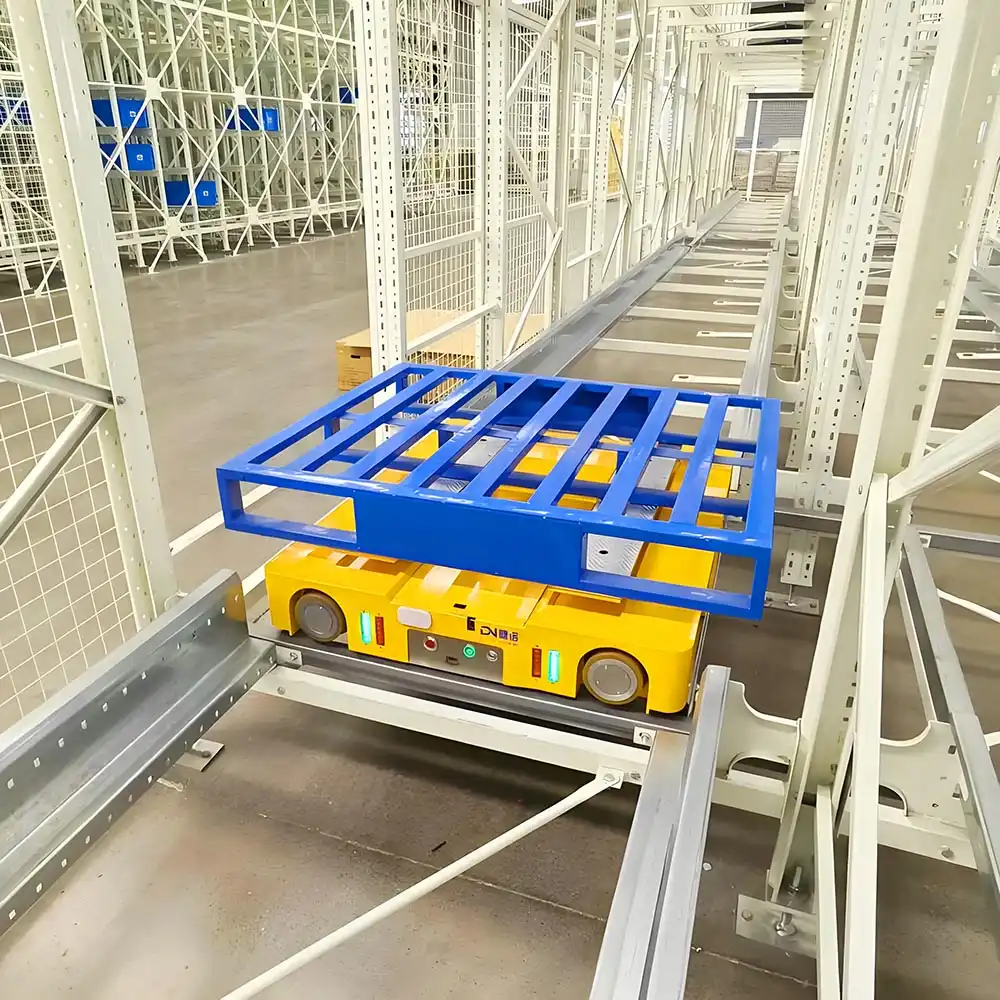

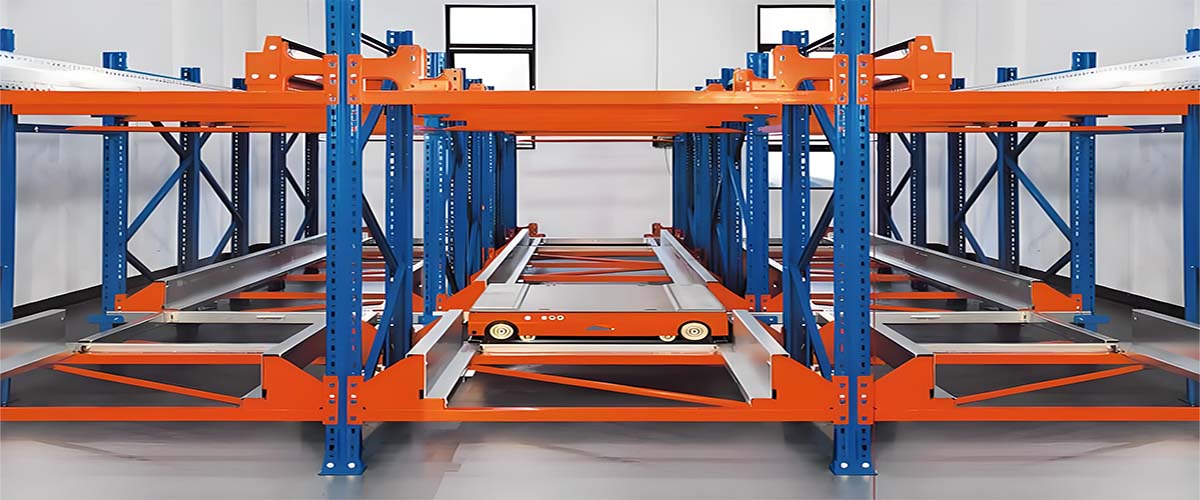

The shuttle racking system, also widely known as the radio shuttle racking system or pallet shuttle system, represents a cutting-edge, semi-automated high-density storage solution designed for modern warehouse environments. This innovative material handling technology utilizes an independent, battery-powered motorized shuttle cart that runs efficiently along specialized rails within the racking channels. By eliminating the need for conventional forklifts to enter the storage lanes, the shuttle pallet racking system significantly optimizes horizontal space and vertical clearance, paving the way for maximum warehouse throughput and enhanced operational safety.
As a premier global supplier of industrial warehouse storage equipment, our custom shuttle racking system is engineered to transform standard storage facilities into high-performance distribution hubs. Whether your logistics model operates on a First-In, First-Out (FIFO) or a Last-In, First-Out (LIFO) inventory management logic, our customized configurations seamlessly integrate with your existing material handling equipment. Investing in a tailored pallet shuttle racking system allows your business to achieve optimal bulk storage density while drastically minimizing pallet cycle times, product damage, and labor costs associated with traditional drive-in configurations.
Key Benefits of Custom Pallet Shuttle Racking
Implementing a custom-designed radio shuttle racking system offers a transformative upgrade to your supply chain logistics. Unlike traditional drive-in or selective structures, our engineered solutions deliver distinct economic and operational advantages.
Maximization of Volumetric Storage Capacity: Our high-density storage solution completely removes forklift operating aisles within the racking footprint. This architectural advantage allows you to store significantly more unit loads in a smaller total area, maximizing space utilization by up to 85%.

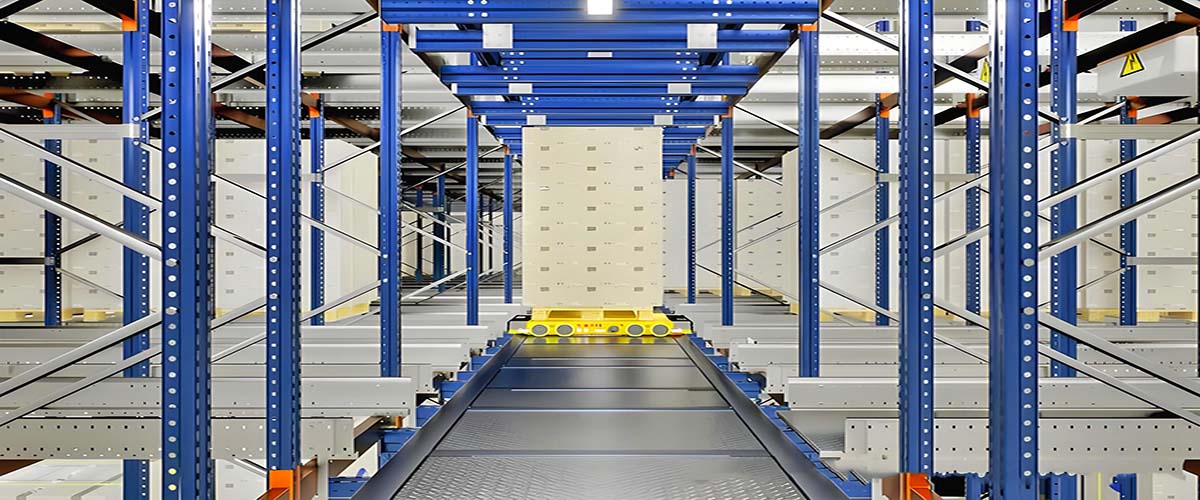

Drastic Reduction in Operational Cycle Times: Forklift operators no longer need to navigate deep inside structural lanes to deposit or retrieve inventory. The autonomous pallet shuttle cart executes the internal deep-lane travel, allowing your warehouse personnel to focus strictly on loading and unloading at the face of the rack.
Unparalleled Structural Safety and Low Maintenance: Because material handling vehicles remain strictly outside the storage blocks, the risk of accidental forklift impacts against upright frames is completely minimized. This drastically reduces ongoing rack maintenance costs and ensures a safe working environment.
Flexible Inventory Management (FIFO & LIFO): The structural configuration of our shuttle pallet racking can be custom-tailored to accommodate either LIFO (loading and unloading from the same aisle) or FIFO (loading from one side, picking from the opposite side) methodologies to match your product rotation needs.
Optimized Performance in Cold Storage Environments: Cold and frozen warehouses incur exceptionally high energy costs per cubic meter. The ultra-compact layout of our radio shuttle system is highly efficient for blast freezing and cold rooms, operating reliably down to temperatures as low as -30°C.
Industrial Applications of Radio Shuttle Systems
The immense flexibility, speed, and spatial efficiency of the shuttle racking system make it a premier choice across a vast array of global industries that demand high-volume bulk handling and precise inventory control.
In the Fast-Moving Consumer Goods (FMCG) sector and the Food and Beverage industry, managing large batches of homogeneous inventory with rapid expiration dates is crucial. Our systems allow these facilities to maintain deep-lane storage structures dedicated to specific Batch Numbers or Stock Keeping Units (SKUs), ensuring effortless compliance with food traceability and rotation protocols. Similarly, the Cold Chain and Frozen Logistics industries rely heavily on our radio shuttle setups because compressing the footprint directly lowers the thermal mass of the cold room, driving down massive electrical and refrigeration expenses.
Furthermore, Pharmaceutical Distribution Centers utilize the pallet shuttle system to store highly sensitive products under climate-controlled conditions where fast, error-free automated picking is required. The Automotive Manufacturing and Third-Party Logistics (3PL) sectors utilize the heavy-duty variants of our custom shelves to manage incoming raw components, heavy manufacturing components, and cross-docking operations, keeping pace with strict production schedules without expanding physical facility walls.
Frequently Asked Questions (FAQ)
What is the main difference between a shuttle racking system and a drive-in racking system?
While both options provide excellent high-density storage, the structural operations differ completely. A drive-in rack requires a forklift operator to physically drive inside the metallic framework of the rack to drop off or pick up a pallet. This process is time-consuming and introduces a constant risk of structural collisions. In contrast, a shuttle racking system utilizes an automated motorized shuttle cart to perform the travel inside the deep lanes. Forklifts remain safely in the main operating aisle, which increases throughput speed, cuts labor requirements, and eliminates structural damage.
Can a single pallet shuttle cart handle different sizes of pallets within the warehouse?
Yes, our advanced radio shuttle carts can be custom-engineered with multi-sensor arrays to detect and handle different pallet styles, such as Euro pallets, American standard pallets, or custom industrial skids. However, it is essential that the width of the pallet matches the spacing of the custom-profiled shuttle rails inside the racking. During our initial engineering design phase, we custom-tailor the rail layout to fit the specific pallet dimensions used in your daily supply chain operations.
How does the pallet shuttle handle positioning and prevent collisions inside the rack?
Our pallet shuttle system is built with advanced onboard automated technologies. The shuttle features a network of integrated laser guidance systems, ultrasonic position sensors, and precise limit switches. When an operator sends a command via the remote control, the cart lifts the pallet, measures the exact distance to the next available slot or stored inventory item, and slows down to gently deposit the load. It automatically maintains pre-configured safety gaps between adjacent pallets to ensure smooth, damage-free operation.
What happens if the lithium battery dies while the shuttle is deep inside a lane?
Our equipment features an intelligent, multi-tiered low-battery warning protocol. When the charge drops below a specific threshold, the pallet shuttle cart automatically finishes its current cycle and returns directly to the front lane opening for safe removal and battery swapping. In the unlikely event that a battery drains completely while inside a deep lane, every system comes equipped with an emergency mechanical recovery vehicle. This tool allows warehouse staff to easily retrieve the stalled shuttle without entering the rack structure.
Is it possible to convert an existing standard drive-in or selective rack into a shuttle system?
In many cases, an existing drive-in framework can be retrofitted or converted into a high-density shuttle pallet racking system. This requires installing our custom-engineered shuttle guide rails, upgrading horizontal support beams, and verifying that the existing frame depth and vertical clearances match the requirements of the automated cart. Our technical team provides complete site inspections and engineering assessments to help you determine the most cost-effective path to upgrade your facility.
Request a Quote for Customized Shuttle Racking and Warehouse Layout Design
Every warehouse facility has its unique space constraints, pallet turnover requirements, and building structural characteristics.
Our team of structural engineers and logistics experts is ready to help you maximize storage capacity and ROI. Contact us today to receive:
Free Warehouse Layout Design (CAD and 3D Rendering): Provide your warehouse dimensions, and we will design the most efficient pallet shuttle system layout for you free of charge.
Customized Technical Solutions: We provide customized seismic calculations, load-bearing capacity ratings, and customized shuttle configurations based on your specific pallet weight and cold chain/normal temperature environment.
Factory Direct Pricing and Global Shipping: Enjoy highly competitive B2B factory direct pricing, certified manufacturing quality (CE, RMI, ISO9001), and reliable international logistics support.
Ready to optimize your warehouse efficiency?
[Click here for a quick quote] or email our engineering department directly at [your contact email address]. Our team will analyze your needs and respond with a comprehensive solution within 24 business hours.
