Introduction: The Structural Compromise of Traditional Warehousing
In high-throughput distribution hubs, tier-1 automotive manufacturing plants, and heavy industrial facilities, material handling managers face a persistent dilemma. Standard selective pallet racking bolted into concrete offers stability, but it is utterly rigid and devours floor space when inventory drops. On the other hand, portable racks or collapsible storage containers often rely on hinges, loose pins, or detachable posts that introduce mechanical failure points, risking catastrophic structural sway under heavy loads.
When you are dealing with tons of dense, irregular, or high-value cargo, you cannot afford structural guesswork. You need a storage medium that combines the rock-solid rigidity of a permanent steel structure with the modular agility of portable logistics.

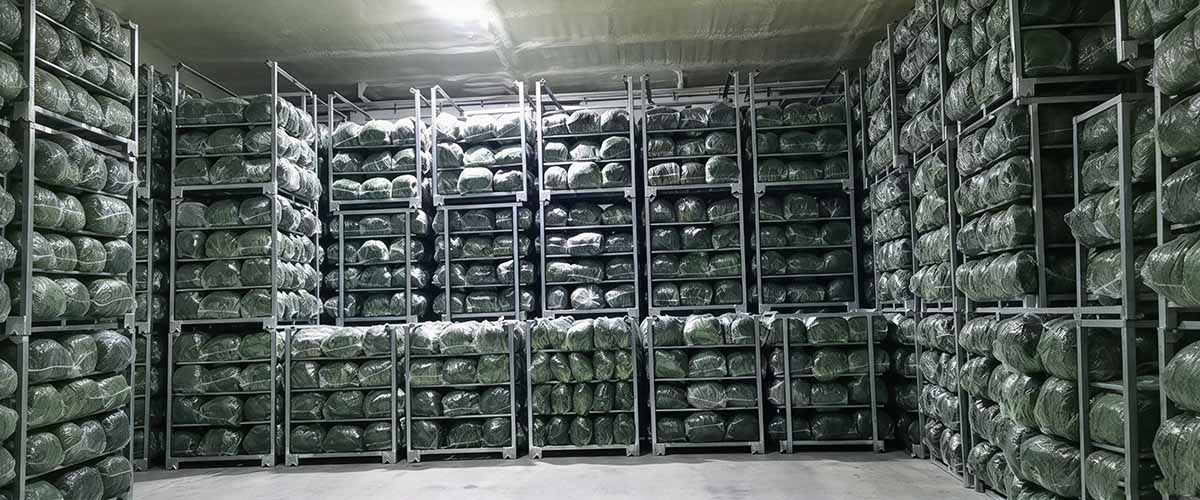

Enter our flagship Fixed Nestable Stackable Racking System—widely recognized in the elite material handling sector as a high-performance Nestainer.
Unlike flimsy folding units or multi-component racks, this system features a 100% rigid, all-welded one-piece structure. With zero moving parts, zero hinges, and zero detachable posts, it delivers absolute structural confidence. Better yet, its genius engineering relies on a unique physical phenomenon: the heavier the cargo you load into it, the more rock-solid and stable the entire stack becomes. And when empty? Its precision-tapered profile allows units to nest snugly into one another, instantly reclaiming up to 80% of your dead floor space.
1. Core Engineering Anatomy: Why “Fixed & Welded” Beats Modular Every Time
In industrial engineering, the fewer connection points a structure has, the higher its load-bearing safety factor. Our nestable stackable racking system is designed around absolute mechanical simplicity.
1.1 All-Welded Monolithic Integrity
Precision Robotic MIG Welding: The base deck and the four vertical corner posts are permanently fused using advanced robotic welding. There are no bolts to loosen, no pins to shear, and no structural play over years of heavy forklift impact.
Zero Maintenance Downtime: Because there are no loose components or moving hardware, your warehouse staff will never lose vital parts, eliminating operational bottlenecks and safety hazards caused by missing equipment.

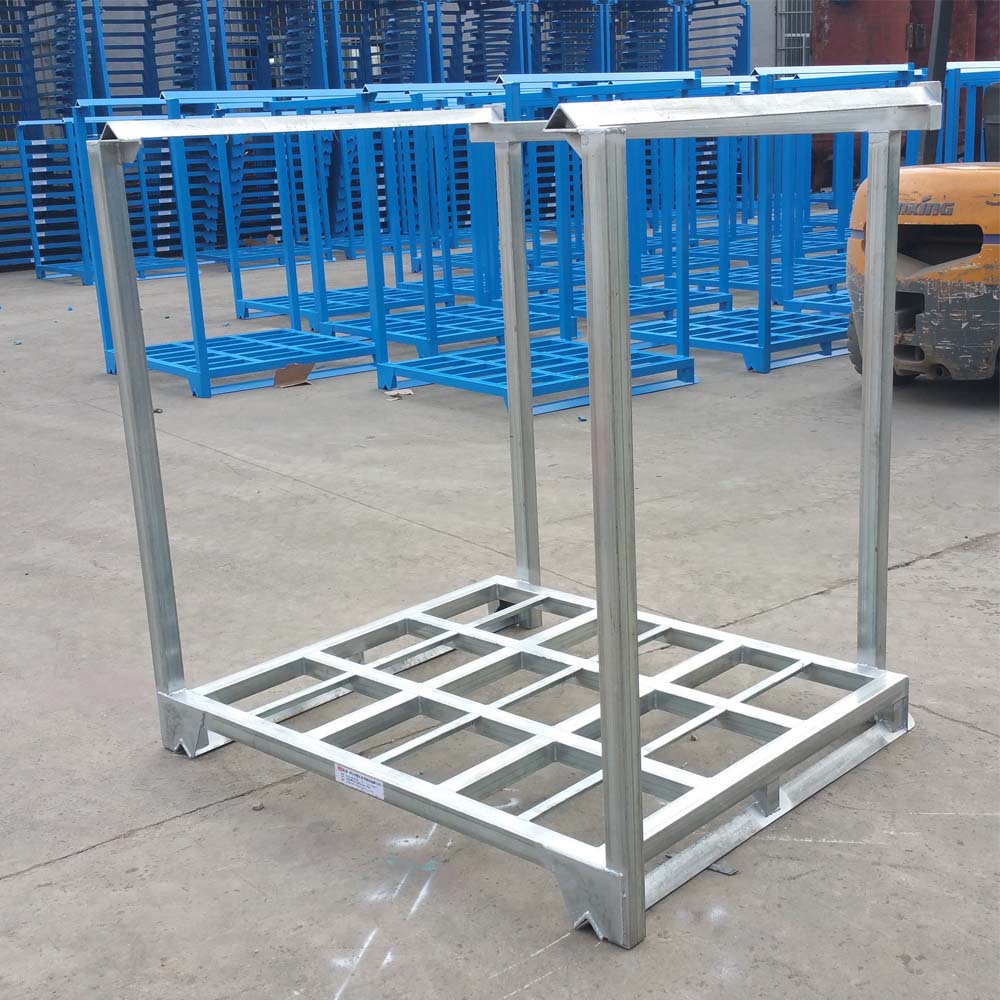

1.2 The Physics of Stability: The “Gravity-Lock” Advantage
A common misconception in warehousing is that heavy weights make stacked units unstable. Our nestable system leverages physics to do the exact opposite:
Precision-Tapered Stacking Shoes: Each unit features heavy-gauge, flared steel receptacle cups welded at the top of the corner posts.
Gravity-Driven Interlock: When an upper rack is placed onto a lower one, its base feet drop precisely into these locating cups. As you load heavy materials (such as steel bars, automotive transmissions, engine blocks, or dense industrial tires) into the racks, downward gravitational force intensifies.
Self-Tightening Engagement: This immense downward pressure locks the mating joints tighter together. The heavier the inventory gets, the more friction and lateral resistance are generated, making the multi-tier stack structurally more stable and completely immune to shifting or sliding.
2. Comprehensive Technical Specifications & Customization Parameters
To ensure seamless integration with your existing material handling fleet and floor layout, our nestable stackable racks are manufactured to rigorous international industrial tolerances.
| Technical Parameter | Standard Heavy-Duty Industrial Specification |
| Structure Type | 100% Fixed, All-Welded Monolithic Frame (Zero Hinges/Bolts) |
| Material Grade | High-Tensile Structural Carbon Steel (Q235B / Q355B / ASTM A36) |
| Single Unit Load Capacity | 1,000 kg to 3,000 kg (2,200 lbs to 6,600 lbs) per individual tier |
| Safe Stacking Height | Stackable up to 3 to 5 tiers high under full load |
| Nesting Efficiency | Saves 75% to 80% of floor space when empty (linear multi-unit nesting) |
| Deck Configurations | Heavy-duty open wire mesh, reinforced steel plate, or fork-channel decks |
| Forklift Compatibility | Optimized 4-way entry for standard forklifts and pallet jacks |
| Surface Finish | Industrial Thermosetting Powder Coat or Corrosion-Resistant Hot-Dip Galvanizing |
3. Operational Advantages: Transforming Your Warehouse Floor
Deploying a fixed nestable stackable racking system yields immediate, measurable returns across your entire supply chain lifecycle.
3.1 Unprecedented Space Reclamation During Empty Cycles

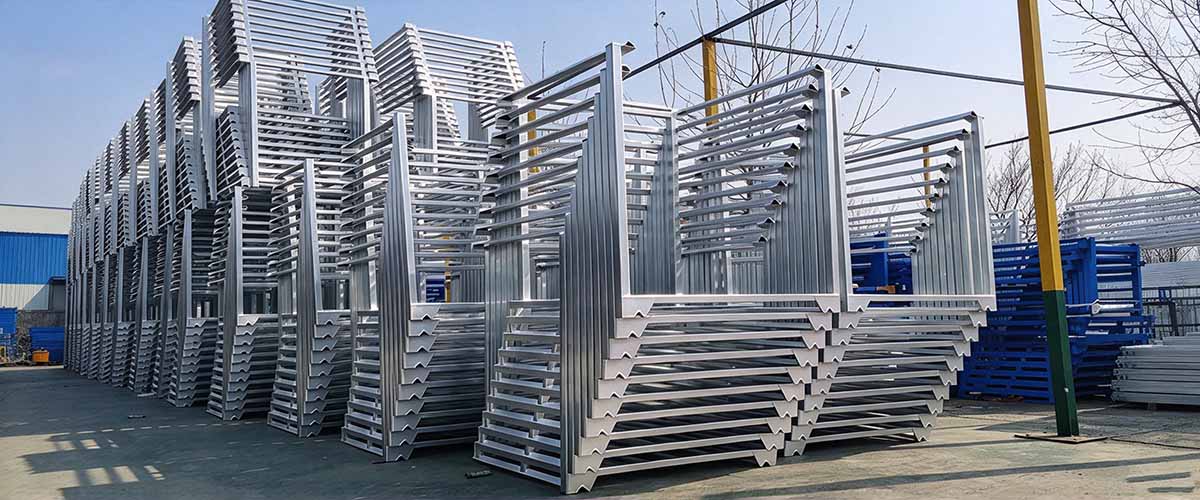

Every warehouse manager knows the headache of storing empty packaging and racks. Traditional fixed racks take up just as much empty space as full ones. Our specialized tapered design allows multiple empty nestable racks to slide linearly into one another.
The Result: Instead of cluttering valuable operational floor space, a towering stack of 6 to 8 empty racks takes up the footprint of only a single unit, instantly freeing up space for staging, packing, and shipping lanes.
3.2 Total Elimination of Product Crush Damage
In traditional block-stacking, heavy pallets are stacked directly on top of one another, crushing the merchandise on the bottom tiers and driving up scrap rates. Our nestable stacking system transfers 100% of the upper load’s weight directly through the heavy-gauge steel corner posts straight to the floor. Your goods remain completely shielded from compression damage, no matter how high you stack.
3.3 Dynamic Portability and Layout Agility
Unlike selective pallet racks that require drilling into concrete floors and professional installation crews, our nestable racks are entirely freestanding and portable. You can move fully loaded racks directly from receiving docks to production lines, or reconfigure your entire warehouse storage layout in a matter of minutes to match shifting seasonal inventory.
4. Ideal Industry Applications
Our heavy-duty nestable stackable racking systems have proven mission-critical across demanding vertical markets worldwide:

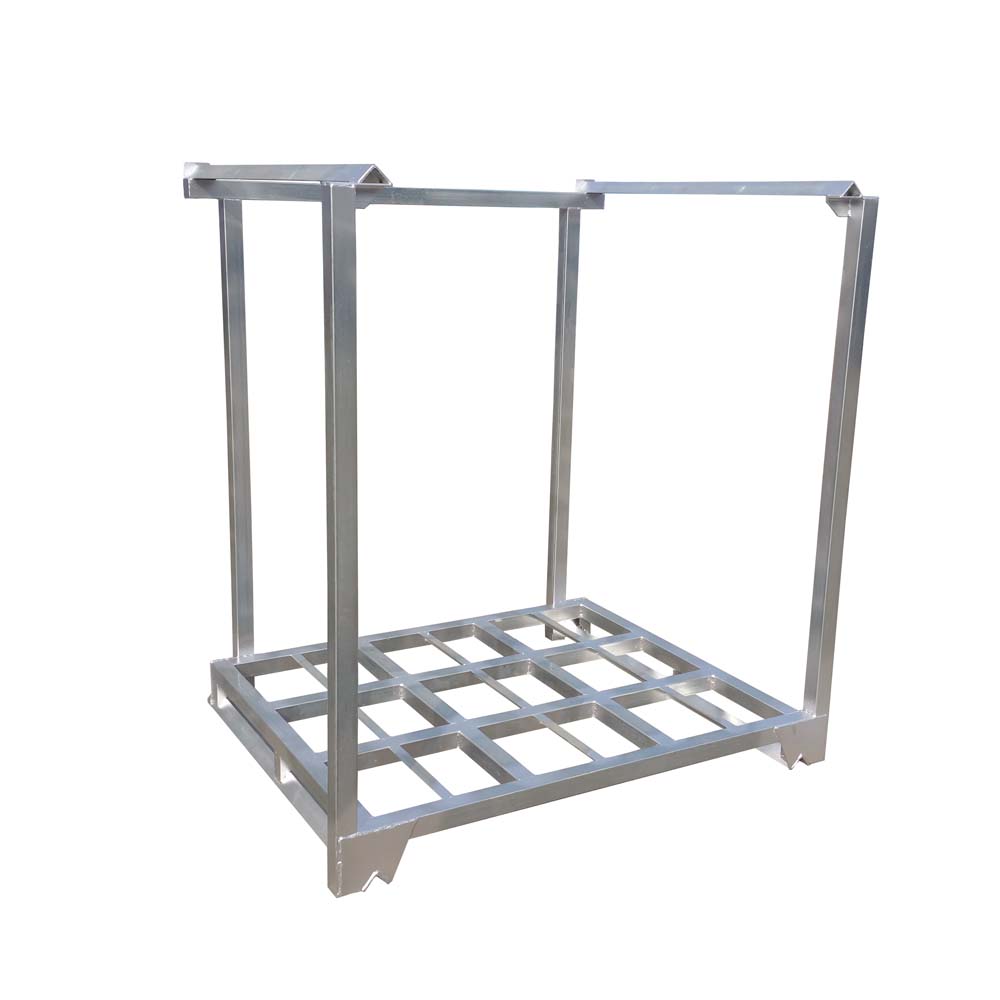

Automotive & Component Manufacturing: Perfect for safeguarding heavy stamped metal panels, gearboxes, exhaust pipes, and industrial tires without tread distortion or structural sagging.
Cold Storage & Food Logistics: Hot-dip galvanized wire-mesh nestable racks withstand sub-zero freezer environments (-30°C) while maintaining optimum airflow around perishable food crates and beverage stock.

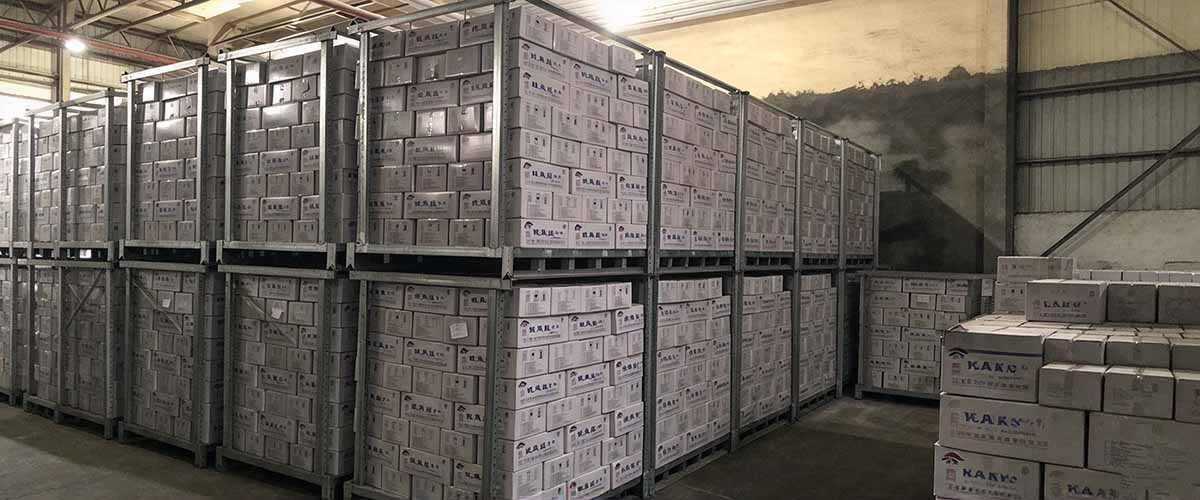

Heavy Retail & Bulk Goods Distribution: Safely organizes irregular, bulky, or non-standard consumer products that cannot fit onto standard flat pallet shelving.
Metalworking & Heavy Engineering: Organizes raw tubes, bars, rods, and work-in-progress (WIP) components directly adjacent to CNC machining centers.
5. Why Global Leaders Partner With Us
When you source your material handling systems from us, you are investing in decades of manufacturing expertise and uncompromising quality assurance:
Direct Factory Economics: Cut out middleman markups and secure industrial-grade storage systems at competitive wholesale rates.
Rigorous Quality Control: Every batch undergoes strict load-bearing and weld-integrity stress testing before clearing our export quality gate.
Tailored Engineering & OEM/ODM Support: Have a unique SKU dimension or strict facility height limitation? Send us your floor plan and load requirements—our in-house structural engineers will design a custom nestable solution built precisely for your workflow.
Frequently Asked Questions (FAQ)
Q1: How many empty nestable racks can be nested together?
A: Depending on the post height and base taper design, typically 5 to 8 empty units can nest securely inside one another in a vertical stack, drastically cutting down your floor footprint and return-freight costs.
Q2: Are these racks safe when stacked 4 tiers high with heavy loads?
A: Yes, absolutely. Because they feature a 100% welded fixed-post design and gravity-locking receptacle cups, the connection actually tightens under heavy weight. As long as you remain within the certified safe working load (SWL) limit for your specific model, the stack is remarkably stable.
Q3: Can the fork channels be customized to fit our specific forklift tines?
A: Yes. We offer fully customizable fork pocket dimensions, clearance heights, and base deck layouts to ensure seamless, safe operation with your existing material handling equipment.
