Description
Managing high-volume, time-sensitive bulk inventory requires a delicate balance between maximum space utilization and flawless stock rotation. Our heavy-duty drive-through racking systems provide the definitive high-density engineering solution for facilities that cannot compromise on the First-In, First-Out (FIFO) logistical principle. By decoupling the loading and retrieval zones, these systems establish a continuous, unidirectional material flow that eliminates operational bottlenecks.
As a leading global manufacturer of industrial material handling infrastructure, we design and fabricate custom drive-thru pallet racks tailored to withstand intense industrial forklift traffic. Our structural solutions allow operations to reclaim underutilized vertical warehouse footprint, lowering total cost-per-pallet metrics while guaranteeing that expiration-prone or batch-controlled goods move through your supply chain with clockwork precision.
What is a Drive-Through Racking System?

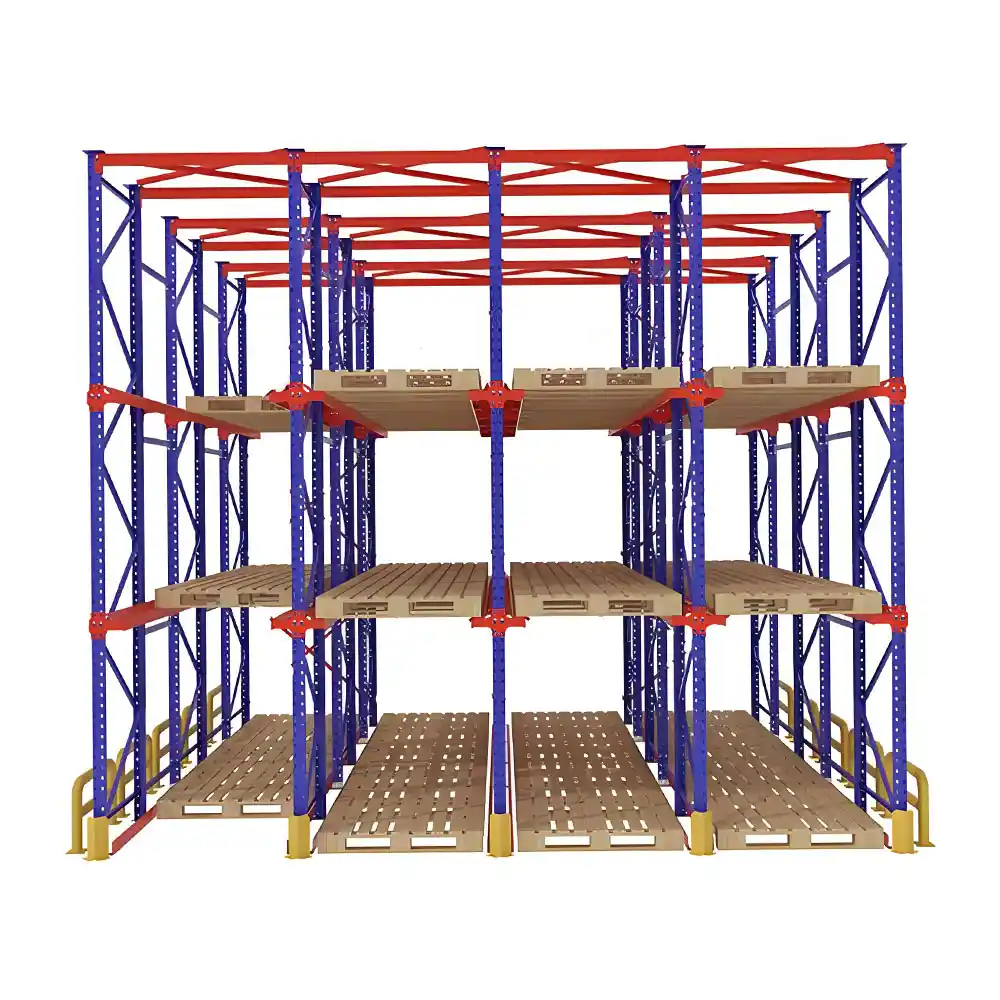

A drive-through racking system (frequently referred to as drive-thru racks) is an ultra-dense storage configuration built upon standard structural upright frames, but characterized by the complete absence of internal cross-beams and rear bracing walls. Unlike its counterpart, the drive-in rack (which operates on a LIFO, single-entry framework against a wall), a drive-through layout is positioned as a standalone island within the warehouse floor grid. It features open access points at both ends of the deep storage tunnels.
Forklift operators enter the structural lanes from the designated “loading aisle” to deposit pallets onto continuous horizontal load rails. Retrieval forklifts operate exclusively from the opposite “picking aisle” to extract the oldest pallets first. This dual-aisle architecture makes industrial drive-through racks the most cost-effective, non-mechanized static storage setup available for maintaining absolute FIFO inventory compliance across large volume runs.
Heavy-Duty Structural Engineering & Torsion Resistance
Because forklifts physically traverse the full depth of the storage tunnels from both directions, the risk of structural deflection and component wear is inherently higher than in standard selective setups. Our manufacturing process utilizes premium structural carbon steel and state-of-the-art robotic welding lines to ensure that every frame sub-assembly meets rigid structural tolerances.
Dual-Anchored Upright Frames & Portals
The vertical uprights are engineered with heavy-wall steel profiles and combined with specialized top-tie portal beams. Since the system lacks traditional cross-bracing within the lanes to allow forklift passage, these overhead structural ties anchor the entire grid into a rigid, monolithic block capable of neutralizing lateral seismic forces and heavy dynamic loading.
Advanced Sloped-Leg Substructures
To mitigate the leading cause of warehouse rack damage—forklift outrigger impacts—we offer optional custom sloped-leg front frames. By recessing the bottom portion of the aisle-facing uprights, we create significantly wider clearance margins for material handling equipment navigating the entry turns, drastically reducing structural maintenance cycles.
Heavy-Gauge Load Rails & Tapered Arms
Pallets rest on continuous structural angle steel load rails rather than horizontal beams. These rails are supported by heavy-duty bolted or welded stub arms attached to the upright posts. The entry point of each rail features a precision-flared guide plate, acting as a centering mechanism that aligns off-center pallets automatically as the forklift drops its load.
Technical Specifications & Custom Engineering Parameters
Every distribution center features a unique combination of floor slab ratings, clear ceiling heights, and forklift mast specifications. The engineering dataset below outlines our standard manufacturing tolerances for custom drive-through racking configurations, all of which can be modified during the CAD design phase.
| Engineering Parameter | Standard Manufacturing Offering | Heavy Industrial / Custom Capability |
| Loading Weight Capacity | 800 kg to 2,000 kg per pallet position | Structural reinforced profiles exceeding 2,500 kg |
| Clear Frame Heights | 3,000 mm to 13,500 mm (10 ft to 44 ft) | Custom high-bay configurations for VNA/Reach trucks |
| Lane Depth Capacity | 4 to 10 pallets deep per side (Up to 20 per tunnel) | Custom depths validated by seismic and floor slab analysis |
| Structural Component Finish | Impact-Resistant Powder Coat / Hot-Dip Galvanized | Anti-microbial coatings / Heavy-zinc finishes for freezers |
| Rail Profile Options | Roll-Formed Z-Rails / Heavy Structural Angle Steel | C-Channel profiles optimized for non-standard skids |
| Safety Certification Accords | RMI (US Standards), CE, ISO 9001, EN 15512 | Certified stamped engineering prints for local building codes |
Core Operational Advantages of Drive-Thru Pallet Racks
Implementing an optimized high-density storage solution built on a drive-through framework transforms operational velocity by introducing several key structural benefits:
100% Strict FIFO Product Safeguarding: Eliminates the risk of buried stock, making it perfect for perishable food, pharmaceuticals, and chemical compounds with stringent shelf-life limitations.
Separation of Loading and Picking Logistics: Eliminates internal cross-traffic and vehicle interference by keeping loading forklifts completely segregated from picking machinery.
Up to 80% Reduction in Needed Aisle Space: Consolidates hundreds of linear meters of conventional access corridors into solid, dense vertical storage blocks.
Substantial Energy Savings in Climate-Controlled Zones: Maximizes the thermal density of blast freezers and cold storage units by minimizing empty air volumes.
Unrestricted Tunnel Depth Scalability: Tunnels can be engineered as deep as your forklift masts can safely travel, offering far greater depth capability than dynamic gravity-flow or push-back systems.
Primary Industrial Deployments and Use Cases
While drive-through racking systems provide structural value across any mass-production environment, they are the industry standard across sectors governed by traceabilities and high throughput rates.
Food, Beverage, and Cold Chain Distribution
In refrigerated logistics, products must be rotated perfectly by batch and expiration date. Our hot-dip galvanized drive-through systems withstand freezing environments down to -30°C without undergoing brittle steel transition. They prevent high-volume items like dairy, fresh produce, and frozen goods from expiring on the shelves by forcing the picking crew to pull inventory from the extraction side.
Pharmaceutical Manufacture and Clean Room Buffering
The pharmaceutical industry requires uncompromised batch tracking and contamination isolation. Drive-through setups allow manufacturers to load newly processed batches directly from the production clean room side into the storage matrix, while logistics teams pull the cured products from the exterior shipping dock side, creating a physical, error-free logistical firewall.
Quality Compliance, Impact Protection, and Technical Layout Services
Safety is the absolute cornerstone of our engineering philosophy. Because drive-through systems experience continuous, bi-directional vehicle interaction, we incorporate robust protection mechanisms as standard layout components. Every custom order is supplied with heavy-gauge steel ground-level guide rails running the full length of the internal lanes, providing mechanical guidance for forklift wheels and shielding the anchors from torsional stress.
Our complete manufacturing pipeline complies with the highest international regulatory framework, including the Rack Manufacturers Institute (RMI) guidelines and European FEM standards. We perform rigorous destructive testing, load deflection modeling, and finite element analysis (FEA) on every custom component layout to ensure structural longevity under maximum capacity.
Furthermore, our internal engineering team provides full CAD design and warehouse layout consultations. We map your specific pallet profiles, weight distributions, and forklift chassis clearances to create a turn-key storage blueprint that maximizes your operational throughput while maintaining absolute, uncompromised structural safety margins.
Request an Engineered Drive-Through Racking Consultation
Ready to maximize your warehouse storage capacity while achieving seamless, automated FIFO inventory rotation? Our structural storage engineers are prepared to design a custom-tailored drive-through racking system built to your exact payload and spatial specifications.
Contact our technical sales department today to request a comprehensive facility analysis, professional custom CAD blueprints, and a transparent, factory-direct wholesale quotation.
