Description
In warehouse environments dealing with extensive volumes of homogenous products, optimizing floor utilization and vertical cube space is the key to minimizing operational overhead. Our precision-engineered drive-in racking systems represent the pinnacle of high-density storage innovation, specifically designed to eliminate redundant forklift aisles and multi-position footprint waste.
As a premier industrial storage solution manufacturer, we engineer custom drive-in pallet racks that capitalize on the Last-In, First-Out (LIFO) inventory management framework. By allowing material handling equipment to navigate directly into the storage bays, this architecture converts structural grid corridors into high-capacity inventory reservoirs. Whether configuring a brand-new fulfillment hub or retrofitting an established distribution facility, our structural heavy-duty configurations deliver unmatched space optimization without compromising on framework safety or longevity.
What is a Drive-In Racking System?

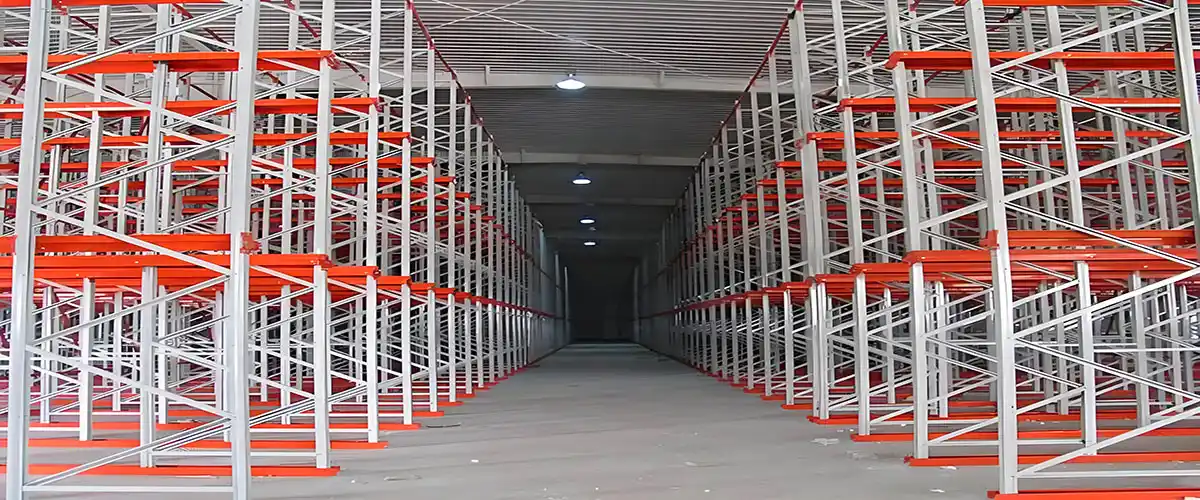

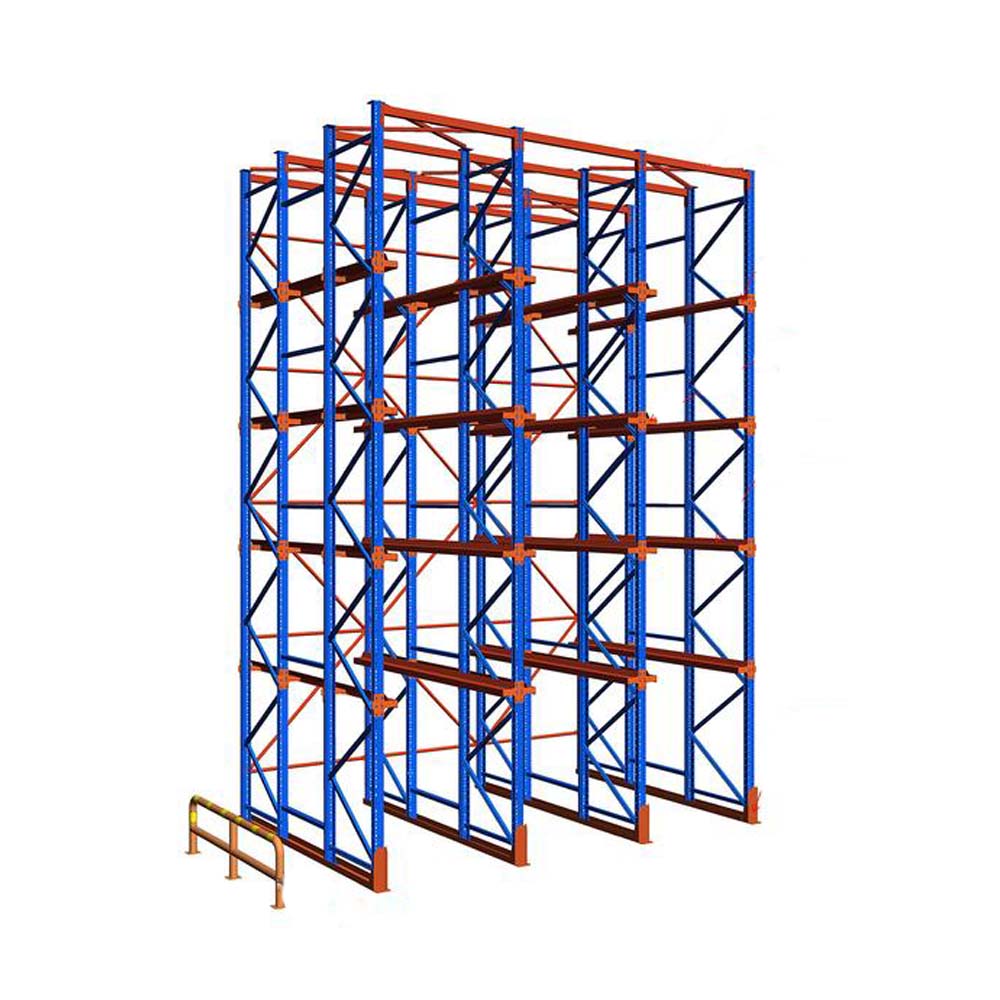

A drive-in warehouse rack is a specialized structural assembly that removes continuous inner horizontal beams, replacing them with continuous structural side support rails. In conventional configuration types, forklifts operate down dedicated cross-aisles to access specific pallet clusters; conversely, a drive-in pallet racking system consolidates these open access spaces. Material handling vehicles enter the physical depth of the racking structure itself to position or retrieve pallets resting on durable, heavy-duty cantilevered support tracks.
This high-density configuration enables warehouses to store up to 75% more pallets within the exact same square footage compared to traditional selective pallet setups. Operating optimally on a strict LIFO management protocol, it accommodates deep lane layouts (frequently ranging from 5 to over 10 pallets deep per single lane entry). It stands as the ultimate countermeasure against spatial constraints for operations prioritizing mass volume storage over individual item selectivity.
Engineered Structural Components & Safety Innovations
The engineering matrix behind our industrial-grade drive-in warehouse system utilizes high-tensile cold-rolled and hot-rolled structural steel profiles. Because forklift units physically maneuver inside the live racking framework, structural resilience and robust safety engineering are treated as absolute priorities throughout our manufacturing pipeline.
Upright Frames and Specialized Cantilever Arms
The vertical upright frames are reinforced with specialized heavy-gauge bracing to withstand potential lateral torsional stresses. Unlike selective systems, these frames utilize heavy-duty tapered cantilever arms bolted securely to the vertical upright columns. These custom arms provide continuous rigid support for the horizontal pallet rails while ensuring clear, unobstructed entry paths for wide forklift masts.
Continuous Pallet Support Rails
Our custom roll-formed pallet guide rails are manufactured from high-durability steel plate profiles, engineered with tapered entry-guides at each lane opening. These sloped structural entry guides assist the forklift operator during entry alignment, reducing structural impact chances. The horizontal tracks feature integrated safety lips to prevent horizontal pallet slippage and ensure pallets sit securely in place across deep storage lanes.
Comprehensive Protection Elements

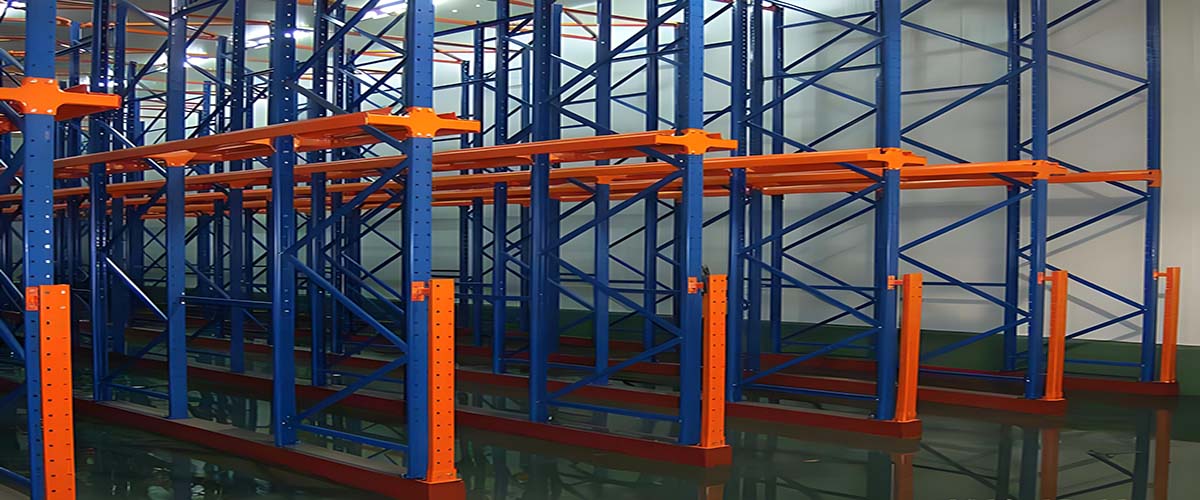

To secure both your capital assets and your personnel, our high-density storage configurations feature heavy-duty base guards as standard equipment. Reinforced ground-level guide rails run the entire interior depth of the storage lanes, serving a dual purpose: they provide physical wheel guides for forklift operators while shielding the base of the upright steel columns from accidental operational impacts.
Technical Specifications & Custom Manufacturing Dimensions
Operational facilities dictate distinct requirements based on floor slab capacities, overhead building clearances, and specific pallet dimensions. The structural chart below outlines our engineering parameters for custom drive-in racking solutions. Every variable is adjustable to align perfectly with your facility’s CAD layouts.
| Technical Parameter | Standard Manufacturing Range | Custom Engineering Options |
| System Loading Capacities | 500 kg to 2,200 kg per pallet position | Reinforced configurations exceeding 2,500 kg per position |
| Maximum System Heights | 3,000 mm up to 14,000 mm (10 ft to 45 ft) | High-bay custom frames matched to specialized lift masts |
| Lane Storage Depths | 2 to 12 pallets deep per single entry lane | Extended-depth lanes with integrated heavy-duty floor rails |
| Steel Framework Finish | Electrostatic Epoxy Powder / Hot-Dip Galvanized | Custom color matching via RAL codes / High-humidity zinc finishes |
| Pallet Frame Adaptability | GMA, Euro, and customized industrial skid formats | Adjustable rail widths configured for non-standard custom pallets |
| Structural Steel Gauges | 12-gauge, 14-gauge, and heavy hot-rolled structural | Seismic-zone structural engineering upgrades |
Core Advantages of High-Density Drive-In Pallet Racks
Implementing a custom-designed drive-in storage rack layout fundamentally alters warehouse space dynamics, yielding significant operational advantages:
Maximum Storage Footprint Utilization: Eliminates up to 80% of conventional forklift access aisles, allowing you to convert raw floor space directly into profitable inventory capacity.
Significant Cost-Efficiency in Cold Storage: Drastically reduces the total cubic volume requiring climate control, maximizing thermal efficiency and lowering energy expenditures in cold and frozen facilities.
Optimized LIFO Batch Management: Ideal for high-volume products characterized by large manufacturing batches, seasonal items, or predictable shipping schedules where absolute SKU selectivity is unnecessary.
Protected Block Stacking Alternative: Provides structural support for easily damaged or non-stackable goods, preventing the crushing issues associated with raw floor-based bulk stacking.
Engineered Customization Versatility: Standard configurations can be engineered as dual-entry Drive-Through systems, offering flexible integration with various warehouse operational flows.
Strategic Enterprise Applications and Use Cases
While drive-in racking systems function exceptionally in any facility facing high storage costs per square meter, they are particularly dominant in specific B2B industrial environments.
Cold Storage and Frozen Food Logistics
Operating a refrigerated warehouse requires immense electrical power to cool large open airspaces. By densifying inventory with a galvanized drive-in warehouse system, companies reduce air pockets and structural void spaces. This tight pallet grouping traps colder air more efficiently, resulting in direct, measurable overhead savings on monthly utility expenses.
Fast-Moving Consumer Goods (FMCG) and Bulk Storage
Manufacturers producing high volumes of identical items (such as beverages, paper products, or building materials) do not require immediate access to every individual pallet. They ship and receive goods in large operational blocks. Our heavy duty storage racks enable these companies to store complete product runs within specialized, dedicated high-density lanes, keeping matching batch codes organized together.
Uncompromising Quality Assurance, Testing, and Compliance
Operating inside a high-density environment requires precision craftsmanship. Our industrial storage solutions are fabricated from premium structural carbon steel and undergo advanced robotic welding to guarantee consistent structural integrity. Every component conforms to international safety standards, including the Rack Manufacturers Institute (RMI) guidelines and CE directives.
Before any production batch leaves our manufacturing facility, it is subjected to a rigorous QA evaluation matrix. We perform structural load testing, finite element analysis (FEA) simulating localized seismic activities, and precise weld integrity checks. This comprehensive engineering approach ensures that your custom investment remains rigid, reliable, and entirely secure under constant daily material handling demands.
Additionally, our expert structural engineering department provides end-to-end support. We utilize advanced CAD simulation tools to examine your building’s floor plans, concrete slab thickness, and material handling truck turn-radiuses. This upfront engineering process guarantees an optimized space configuration that balances high load margins with efficient daily material throughput.
Partner with Our Expert Storage Engineering Team
Are you ready to optimize your facility’s layout and extract maximum value from your warehouse space? Our technical engineering team is standing by to design a customized, high-density drive-in racking system tailored specifically to your load metrics and operational goals.
Contact our corporate sales division today to receive a comprehensive site analysis, professional custom CAD blueprints, and a transparent, factory-direct wholesale quotation.
