Description
When managing a temperature-controlled facility, maximizing volumetric density without sacrificing SKU selectivity is a monumental challenge for logistics managers. Standard selective layouts often leave up to 50% of your expensive ambient or frozen air completely empty due to excessive forklift aisles.
Our industrial-grade push back racks offer the ultimate breakthrough in space optimization. Specifically engineered to perform under the harshest sub-zero temperatures, these dynamic push back pallet racking systems combine the extreme density of drive-in configurations with the rapid operational throughput of selective systems. By utilizing a high-performance nested cart design moving along precision-engineered inclined rails, this advanced gravity flow rack mechanism allows your facility to store pallets 2 to 6 positions deep. It effectively eliminates the need for multiple service aisles, ensuring your material handling equipment operates at peak efficiency from a single access aisle.
1. How Do Push Back Pallet Racking Systems Work?
The operational mechanics of our dynamic warehouse storage systems rely entirely on a combination of mechanical physics and gravity. Forklift operators do not need to drive heavy equipment inside the racking structure, which is a massive upgrade over traditional high-density alternatives.

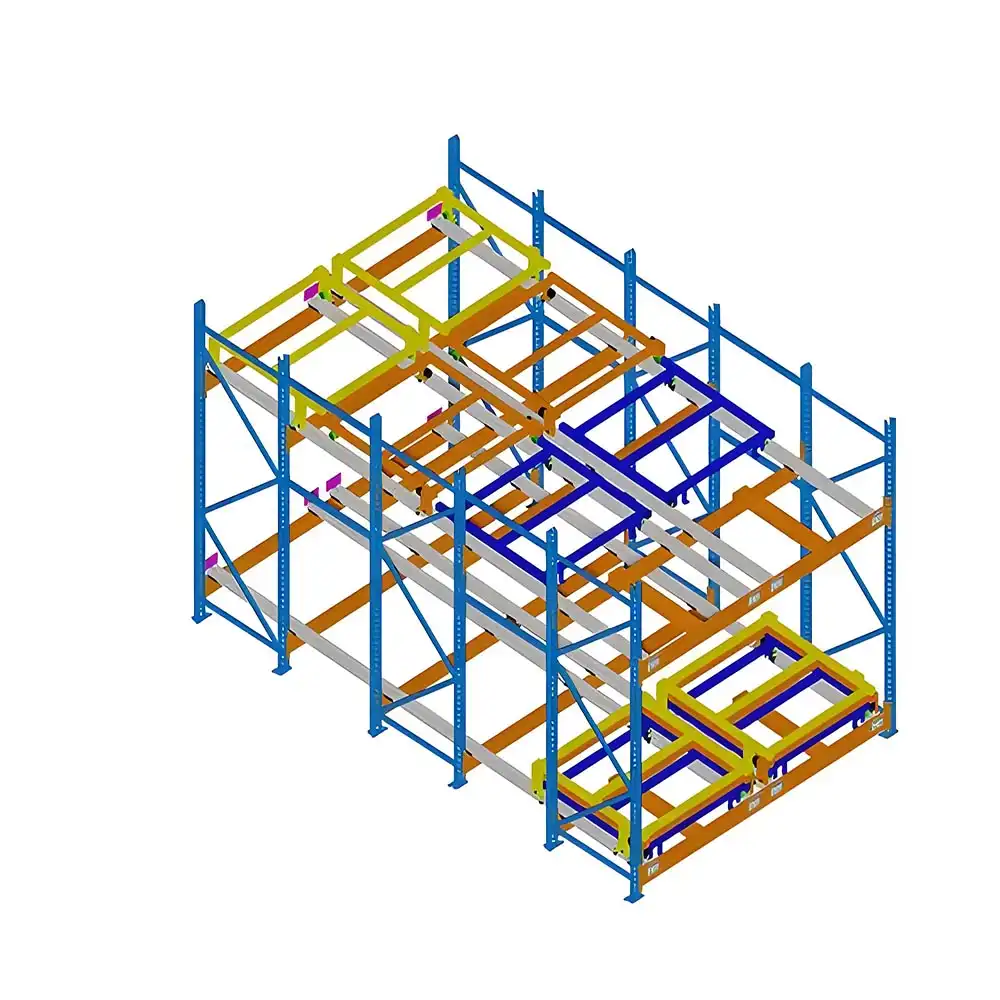

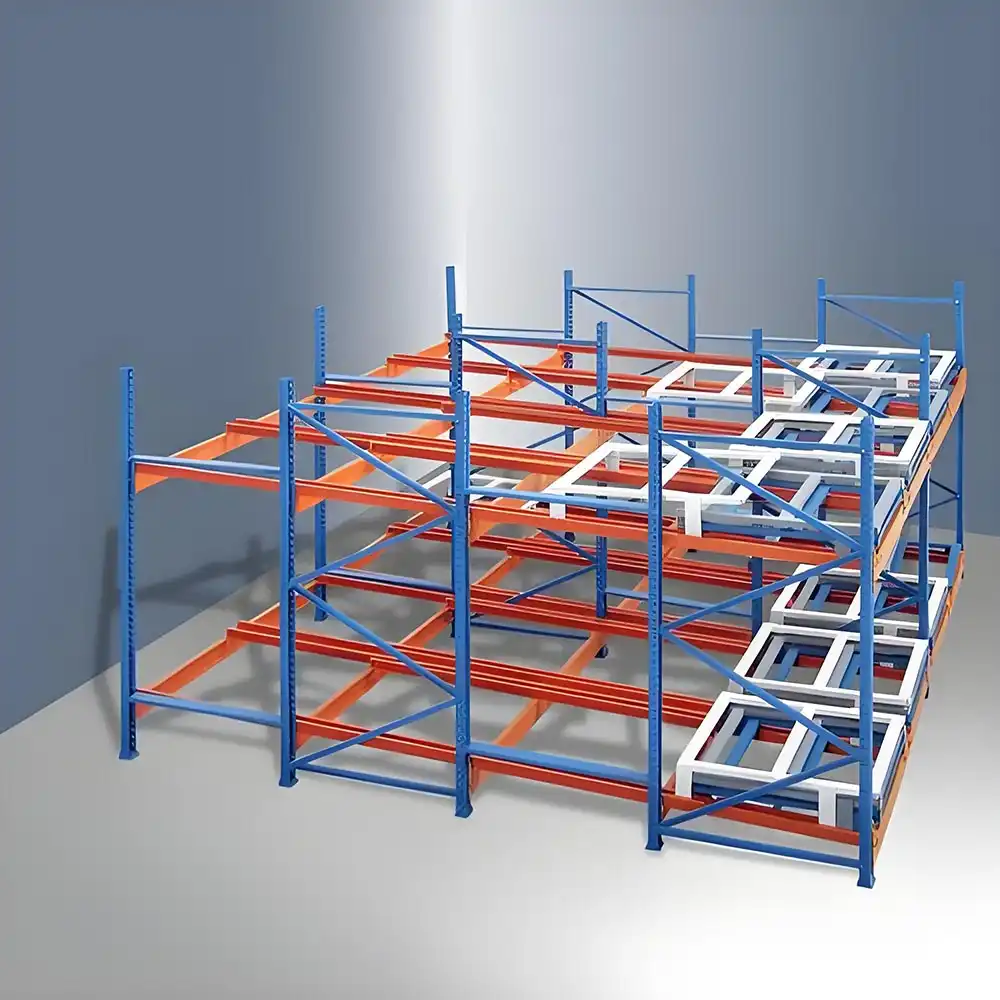

The process begins at the aisle face, where nested carts sit stacked on top of each other on an inclined steel track. When the first pallet is loaded, it sits on the topmost cart. To store a second pallet, the forklift operator gently pushes the first pallet backward into the lane, exposing the next nested cart underneath. This process continues until the lane is filled to its maximum capacity.
When it comes to picking, the system utilizes a LIFO (Last-In, First-Out) inventory flow management style. As the forklift operator removes the front pallet from the loading face, gravity allows the remaining carts to glide forward smoothly to the front of the aisle automatically. This ensures that a fresh pallet is always readily available for retrieval at the pick face, dramatically reducing cycle times and eliminating dead transit time within your cold storage racking solutions.
2. Technical Specifications & Structural Parameters
To ensure our industrial hardware aligns seamlessly with your existing material handling equipment, architectural blueprints, and compliance requirements, our engineering department designs all systems to the following technical benchmarks:
| Engineering & Design Parameters | High-Density System Specifications |
| System Storage Lane Depth | Flexible options including 2-deep, 3-deep, 4-deep, 5-deep, and ultra-dense 6-deep configurations |
| Maximum Rated Load Capacity | Heavy-duty capabilities ranging from 1,000 kg to over 1,500 kg per pallet position |
| Raw Material Build & Construction | Structural hot-rolled steel channels combined with heavy-duty bolted frame assemblies |
| Anti-Corrosion Surface Treatment | Certified industrial Hot-Dip Galvanized (HDG) or Specialized Low-Temp Anti-Chipping Coatings |
| Track Incline Gradient | Calibrated at a precise $3.5\%$ to $4\%$ slope for optimal, safe gravity acceleration |
| Pallet Format Compatibility | Universally accommodates GMA, EURO, Plastic, and Custom industrial skid formats |
| Safety System Inclusions | Integrated mechanical safety end-stops, anti-lift cart hooks, and heavy-duty rubber lane bumpers |
3. Core Advantages of Integrating Dynamic Warehouse Storage
Implementing heavy-duty push back racks inside your warehouse layout yields immediate financial returns by correcting the typical structural inefficiencies found in ambient and cold chain environments alike.
Unmatched Volumetric Footprint Compression: By transforming empty, non-revenue-generating forklift aisles into valuable storage blocks, this layout increases your overall storage capacity by up to 75% without requiring a physical building expansion.
Drastic Energy Conservation and Thermal Battery Creation: Packing frozen or refrigerated goods tightly together minimizes empty air volume. This dense block of inventory acts as a natural thermal battery, reducing temperature fluctuations when loading dock doors cycle open and lowering refrigeration energy bills by 20% to 30%.
Uncompromised SKU Selectivity and Channel Management: Unlike rigid drive-in systems where an entire vertical bay must be locked into one product line, our system allows every single lane and level to house an independent SKU, maximizing your operational versatility.
Maximum Infrastructure and Forklift Safety Protection: Because your material handling equipment never drives inside the physical structural bays, the risk of catastrophic rack collision accidents drops by over 90%, significantly extending the operational lifespan of your warehouse infrastructure.
4. Material Performance engineered for Cold Storage Racking Solutions
Deploying dynamic rolling machinery inside a continuous deep-freeze environment requires a complete abandonment of standard, off-the-shelf industrial parts. Our components are custom-manufactured to thrive in moisture-heavy and sub-zero conditions:
Structural Steel Integrity Over Roll-Formed Profiles
When carbon steel is subjected to temperatures dropping below freezing and pushing down toward $-30^\circ\text{C}$, standard roll-formed thin steel undergoes a dangerous ductile-to-brittle physical transition. Under these conditions, a minor forklift impact can cause standard steel to snap completely. We build our frames exclusively from heavy-wall structural hot-rolled steel channels. This premium steel retains its elasticity and high yield strength at extreme sub-zero thresholds, absorbing kinetic energy via minor deflection rather than sudden, structural fracturing.
Total Hot-Dip Galvanized Anti-Corrosion Protection
The rapid “freeze-thaw” condensation cycles caused by regular warehouse door openings can decimate standard industrial finishes. To eliminate this issue, our dynamic systems undergo a total Hot-Dip Galvanized (HDG) treatment. Immersing the fabricated steel parts in a molten zinc bath creates a permanent metallurgical bond that protects both the interior and exterior walls from rust, peeling, and oxidation, exceeding international food and pharmaceutical sanitation standards.
Specialized Low-Viscosity Sub-Zero Moving Components
Standard wheels and bearings easily freeze, seize, or crack when kept inside industrial freezers. Our nested carts feature heavy-duty steel wheels packed with highly specialized, low-viscosity sub-zero lubricants and completely sealed stainless steel bearings. This guarantees that carts slide smoothly down the inclined rails without jamming, preventing manual maintenance and operational downtime.
5. Industrial Applications Across High-Value Sectors
Our versatile push back pallet racking systems are deployed globally to optimize space utilization across industries with strict inventory control mandates:
Cold Chain Logistics & Third-Party Warehousing (3PL): Maximizes density in premium urban locations where cold room expansion costs are high.
Frozen Food Processing & Meat Distribution: Ideal for bulk staging of single-SKU frozen meats, packaged seafood, and blast-frozen agricultural products.
Dairy & Perishable Beverage Storage: Facilitates rapid, high-density rotation of high-turnover products like fluid milk, artisanal cheeses, and fresh juices.
Biomedical & Pharmaceutical Warehousing: Provides structured, high-density, and compliant multi-SKU storage zones for temperature-sensitive vaccines and therapeutics.
6. Push Back Racks: Frequently Asked Questions (FAQ)
Q: What is the main operational difference between a push back rack and a gravity flow rack?
A: The primary difference lies in the inventory management style and access requirements. Push back racks operate on a LIFO (Last-In, First-Out) matrix, meaning the loading and picking operations happen at the exact same front aisle face. Conversely, a standard pallet flow or gravity flow rack operates on a FIFO (First-In, First-Out) system, requiring dedicated lanes where pallets are loaded from a rear aisle and picked from a separate front aisle, which consumes more footprint for access pathways.
Q: What safety mechanisms prevent a pallet from rolling out into the main service aisle?
A: Safety is engineered directly into the physics of our inclined rails. The track incline is restricted to a precise $3.5\%$ to $4\%$ gradient, ensuring pallets move forward at a controlled, predictable pace. Furthermore, the front of every lane features heavy-duty, structural steel mechanical safety stops that physically lock the leading wheels of the cart into place, ensuring the face pallet stays perfectly aligned until retrieved.
Q: Can standard material handling equipment be used with these high-density systems?
A: Yes. One of the greatest financial benefits of our design is that it integrates flawlessly with standard counterbalanced forklifts, conventional reach trucks, and stand-up warehouse vehicles. You do not need to invest in specialized narrow-aisle equipment. Your existing fleet only requires standard mast tilt functionality and enough pushing power to smoothly guide the pallet weight up the slight incline during loading.
Reclaim Your Wasted Warehouse Footprint and Maximize ROI Today
Every square meter of unoptimized warehouse volume is actively chipping away at your company’s profitability. Our global engineering department specializes in turning low-yield, high-overhead storage zones into high-efficiency, maximum-density operations through advanced structural layouts.
Contact our technical consultation desk today to connect with an experienced industrial engineer. We will provide a completely free, comprehensive 3D warehouse space utilization design along with a transparent, high-ROI quotation tailored to boost your storage capacity while safeguarding your bottom line.
